Description

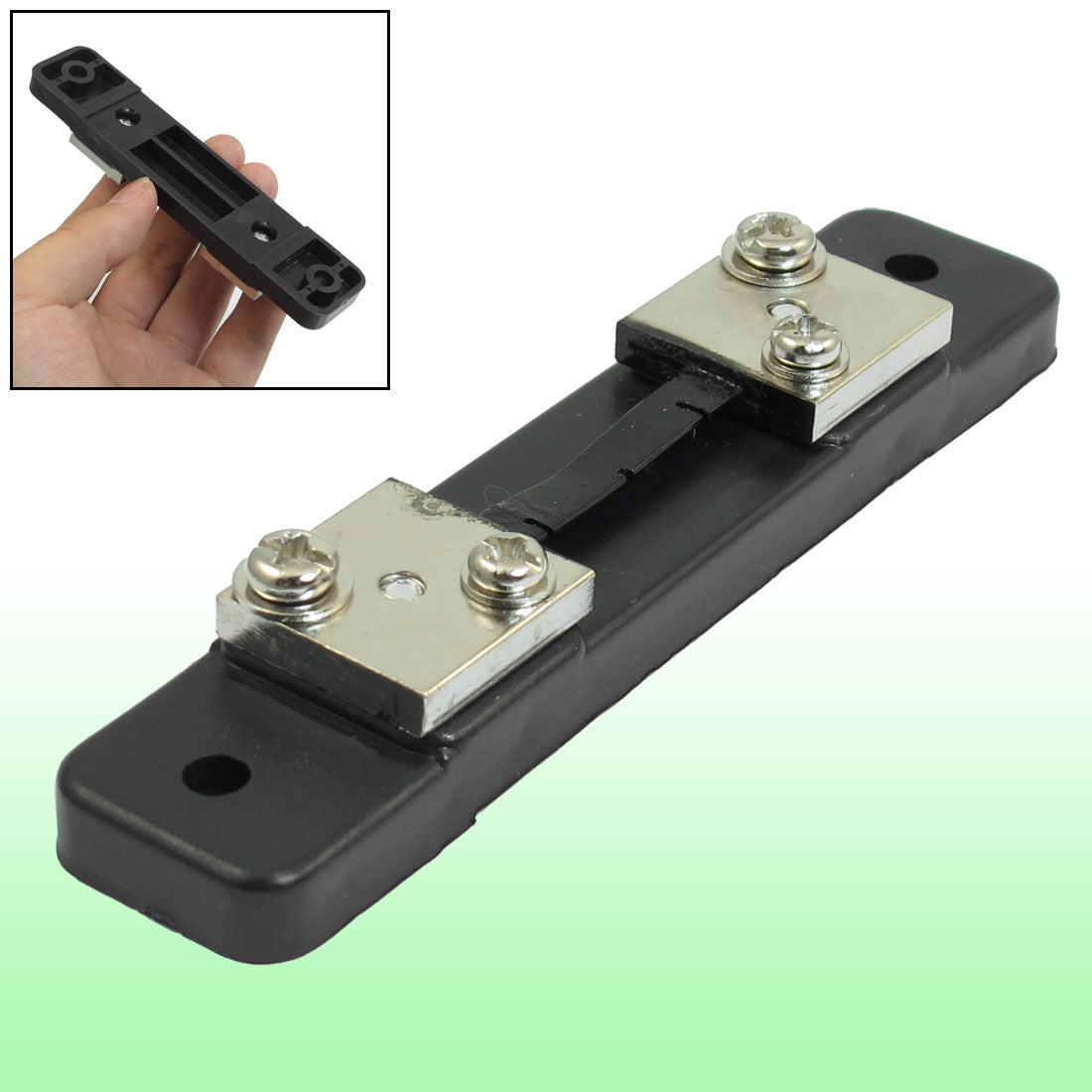

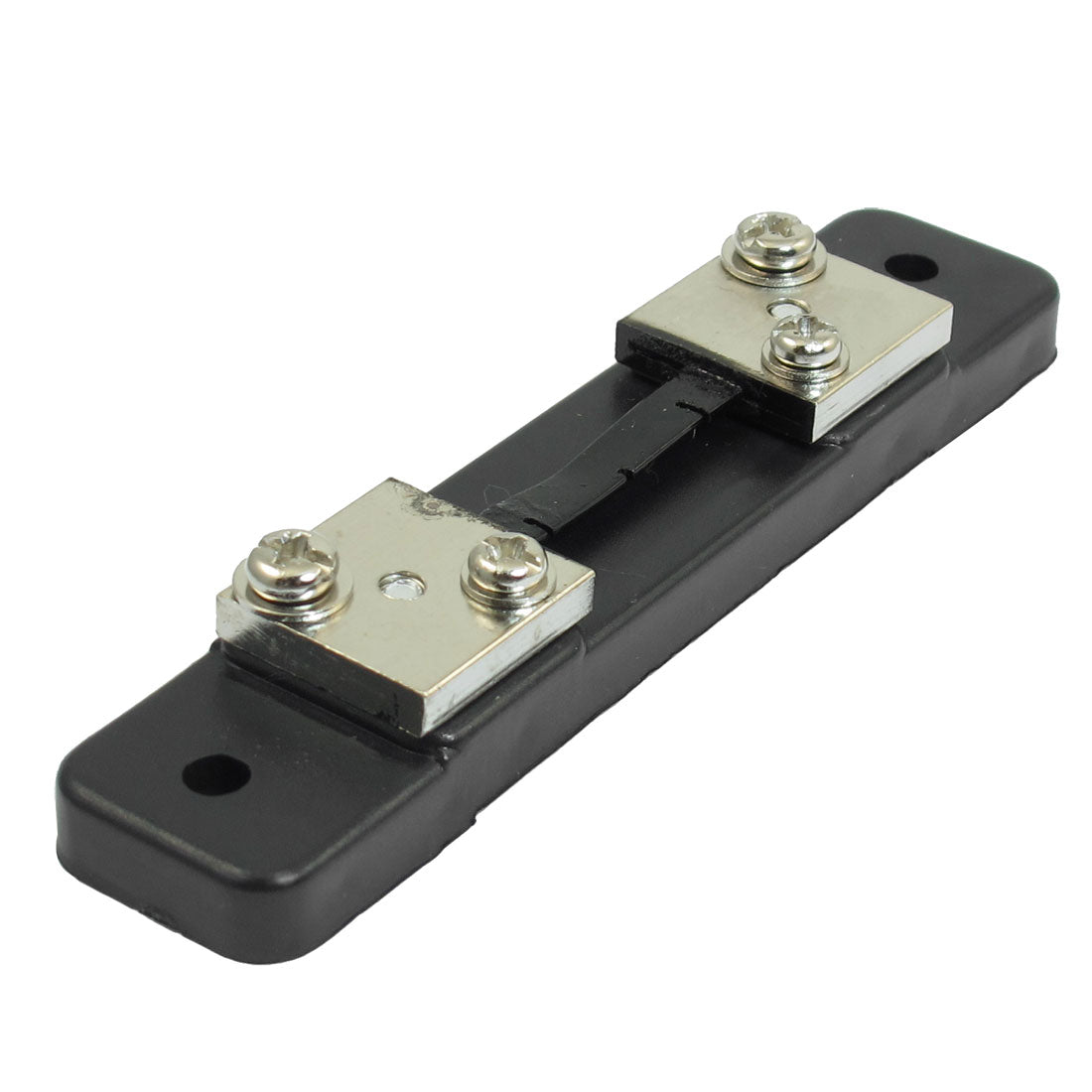

- Product Name : Shunt Resistor;Material : Metal, Plastic
- Color : Black;Accuracy : 0.5 Class
- Current : 30A;Voltage Drop : 75mV
- Dimension : 120 x 25 x 18mm / 4.72″ x 0.98″ x 0.71″(L*W*T);Mounting Size : 6x100mm/0.24″ x 4″(D*Distance)
- Net Weight : 58g;Package Content : 1 x Shunt Resistor
Specifications:
| Product Name | Shunt Resistor |
| Material | Metal, Plastic |
| Color | Black |
| Accuracy | 0.5 Class |
| Current | 30A |
| Voltage Drop | 75mV |
| Dimension | 120 x 25 x 18mm / 4.72″ x 0.98″ x 0.71″(L*W*T) |
| Mounting Size | 6x100mm/0.24″ x 4″(D*Distance) |
| Net Weight | 58g |
| Package Content | 1 x Shunt Resistor |
Description:
- 30A rated current, 75mV rated voltage.
- The splitter allows the high current to directly pass.
- Can be used to expend measuring range of ammeter. DC ammeter and splitter are used in conjunction.
- Good quality, good performance and easily installation.
