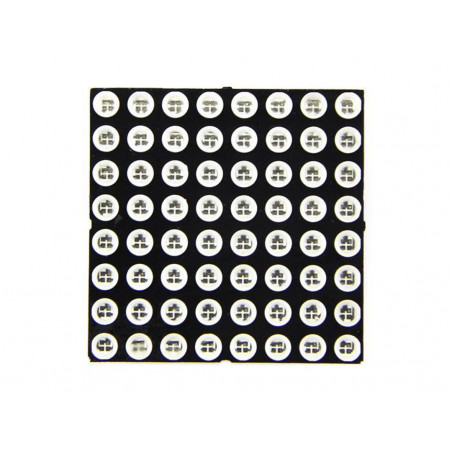

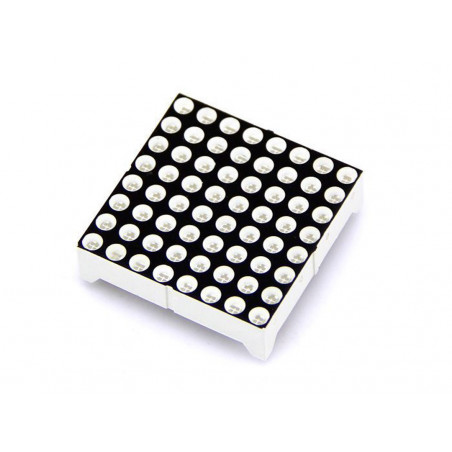

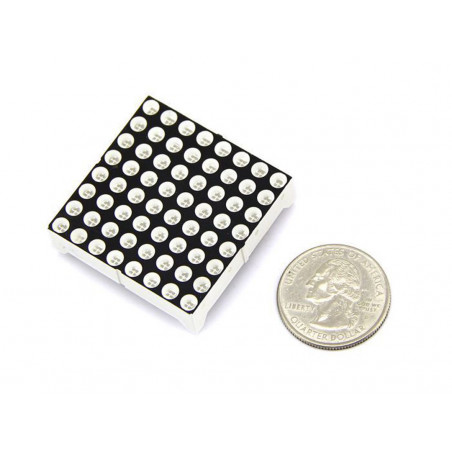

38mm 8*8 square matrix LED matched with Grove – Red Common Anode – Seeed Studio

LED Matrix is low cost and usually used to display simple numbers and images. This is a 38mm 8*8 square matrix LED which can be pluged in the Grove – LED Matrix Driver (It‘ s the I2C based product which allows you to control the LED matrix with our prepared and easy-to-use libraries, or you can create your own library to control it to satisfy your need). The 8*8 LED Matrix can be assembled and unassembled from the driver board easily, so it is convenient to change different color LED matrix display based on your need.
Specification
– Pixel Array: 8X8
– Color: Red
– Luminous Intensity: 55mcd
– Dimension: 38mmX38mmX7mm
– Weight: 12g
– Reverse Voltage(Max): 5V
– Forward Current(Max): 20mA
– Peak Forward Current(Max): 150mA
– Operating Temperature(Max):-40~+85?
– Storage Temperature(Max): -40~+100?
– Lead Solder Temperature(Max): 260? for 3 seconds
